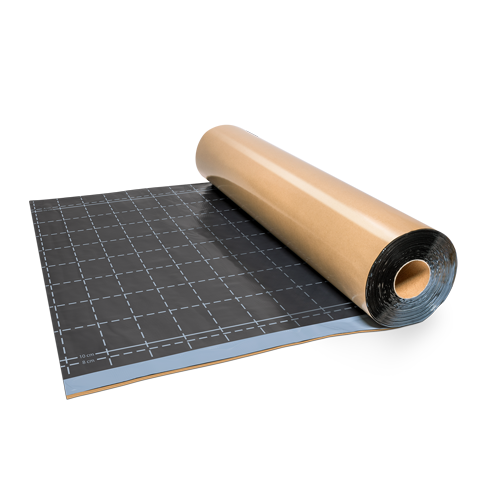

Rasco SAM S (Thickness 1.5 mm)

Cold-applied self-adhesive bitumen sealing membrane for waterproofing of structures especially at high temperatures in accordance with EN 13967, EN 13969 and EN 14967

The 25 mm vulcanisation strip consists of pure bitumen compound. The purpose is to achieve better joints between the materials by sticking compound on to compound and so ensuring even better sealing. Protects underground structures permanently against ground damp (capillary water, retained water), non-standing seepage water and pressure-free water.

It can be applied to vertical and horizontal surfaces foundation slabs, foundations, balconies, terraces, underground garages, cellar walls and patios, prior application to older bituminous treatments and thick coatings, as well as all known and suitable mineral substrates.


Contact request

Features

  • Solvent-free and environmentally friendly
  • Self-adhesive, flexible, crack-bridging
  • Clean, easy and fast use
  • Immediate resistance to water and driving rain
  • As dampproof course below screed
  • No drying time needed
  • Impervious to radon
  • Impervious to methane
  • 25 mm vulcanisation strip for secure adhesion of seams
  • Polymerised bitumen on crosslaminated, tearproof HDPE carrier film with grid
  • Frost-free at least 12 months shelf-life

Technical Data

  • Thickness: 1.5 mm
  • Width: 1,000 mm (975 mm + 25 mm vulcanisation strip)
  • Weight: 1.5 kg/m²
  • Water vapour permeability: Sd-value 165 m
  • Resistance to hydrostatic pressure*: 8 bar (80 m) passed
  • Reaction to fire: Class E
  • Working temperature**: +10°C to +45°C

Packaging Unit

  • 20 rm / carton | 15 cartons / pallet | pallet weight approx. 550 kg
  • 15 rm / carton | 15 cartons / pallet | pallet weight approx. 430 kg
  • 5 rm / carton | 24 cartons / pallet | pallet weight approx. 250 kg

* Examination was carried out using a test unit from company „Form+Test Seidner“ type „DP 3 MM“. High pressure load testing was carried out over a period of 5 days. No connection to actual circumstances and requirements on the building site exists.
** Temperature: component, installation and ambient temperature.
