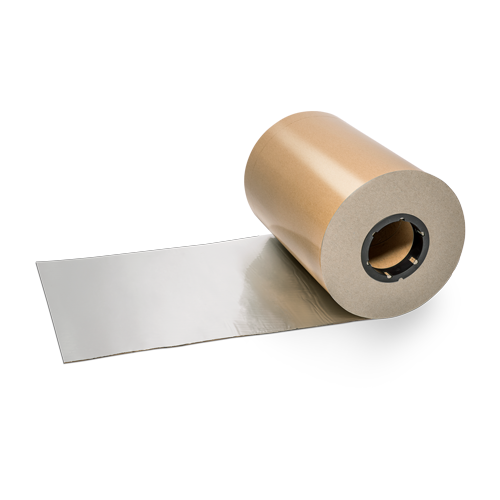

Rasco Alu SAM Edging Tape

Cold-applied self-adhesive bituminous edging tape on aluminium carrier foil for use within the Rasco SAM system. For waterproofing in areas with exposure to UV radiation

Vapour diffusion-proof universal tape based on bitumen for sealing against wind and water.

It can be applied to vertical and horizontal surfaces foundation slabs, foundations, balconies, terraces, underground garages, cellar walls and patios, prior application to older bituminous treatments and thick coatings, as well as all known and suitable mineral substrates. It can be also applied to suitable metal, plastic and insulating surfaces.

Contact request


  • Solvent-free and environmentally friendly
  • Self-adhesive, flexible, crack-bridging
  • Applicable all year round
  • Clean, easy and fast use
  • Immediate resistance to water and driving rain
  • UV-resistant
  • No drying time needed
  • Best resistance to aggressive agents
  • Available with or without perforation
  • Polymerised bitumen on PET-Al-PET laminate film
  • Frost-free at least 12 months shelf-life

Technical Data

  • Thickness: 1.5 mm (customised)
  • Width: 100 mm, 150 mm, 200 mm (customised)
  • Weight: depending on thickness and width
  • Water vapour permeability: Sd-value > 1,500 m
  • Working temperature*: -5°C to +30°C

Packaging Unit

  • 15 rm / roll (customised)

* Temperature: component, installation and ambient temperature.
